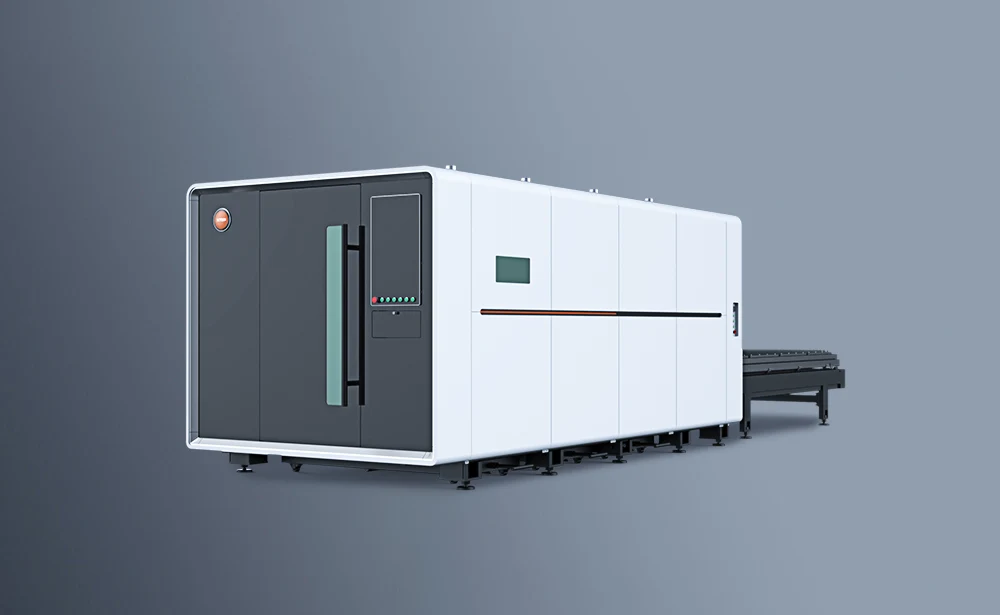

3kW-12kW Sheet metal laser cutting machine G series 2.0
Compared with the previous version, the XT LASER G series2.0 has not only been upgraded to a larger ultra-high-definition display, but also added a full set of intelligent control systems, which makes the operation process more convenient and intuitive. The higher power option can meet the needs of customers who mainly cut medium and thick metal plates.
- Laser Power: 3-12 kW
- Processing Area: 1530*3050 mm
- Max Load of Platforms: 800kG
Performance Advantages
The equipment has high cutting efficiency, stable cutting quality, low failure rate, and can still perform stably even when working for a long time.
High-efficiency exchange table
- The machine is equipped with two work tables of the same size, while cutting, workers can normally load/unload materials, realizing the cycle processing mode of loading/unloading materials while cutting.
- One worker can operate multiple machines at the same time, which saves labor costs and improves work efficiency.
Processing without smoke and dust
- The fully encompassing metal cover isolates the smoke and dust generated from the outside world, forming a closed processing environment, making the processing process more green and environmentally friendly.
- Effectively reduce the smoke and dust pollutants generated during machining.
Z-axis modular sealing
- Z-axis adopts precision sealing integration technology, integrating and encapsulating the core transmission components such as ball screws, linear guides, servo drives, etc., eliminating the assembly errors of the traditional split structure and ensuring that the geometric accuracy of the motion trajectory is within ±0.02mm.
- Multiple sealing protection, effectively blocking external dust intrusion.
| Model | XT-G1530 |
| Working Area | 1530×3050mm |
| Laser Power | 3-12kW |
| Fastest Platform Exchange Time | 25s |
| Z-axis Stroke | 370mm |
| Max Linkage Speed | 130m/min |
| Max Acceleration | 1.5G |
| Positional Accuracy | ±0.03mm |
| Re-positional Accuracy | ±0.02mm |
Mechanical Advantages
This equipment is specially designed for the metal processing industry, and its body structure’s ability to resist deformation is 60% higher than before.
Aviation Aluminum Beam
3.0 One-piece bed
Fully enclosed metal cover
Control System Advantages
The equipment is equipped with a professional control system and built-in multiple functions, which can greatly improve processing accuracy and efficiency, reduce failure rate and save costs.

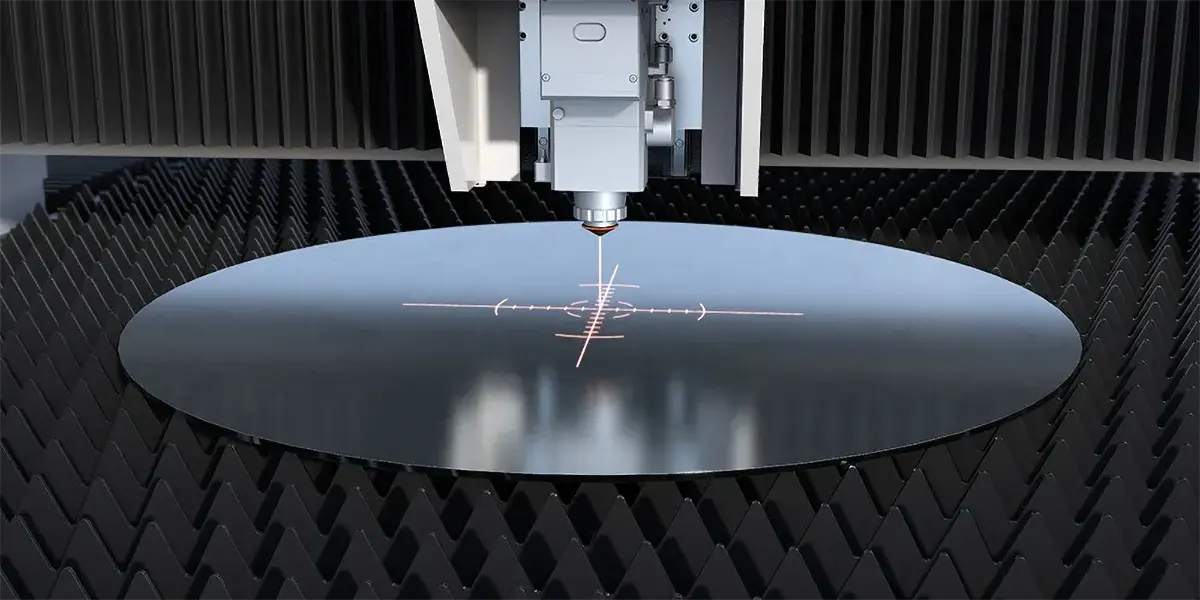

After scanning the edges of the sheet through the laser sensor, the system algorithm locates the geometric center of the sheet or workpiece, ensuring that the cutting path and material position are precisely matched, thus improving cutting accuracy and material utilization.

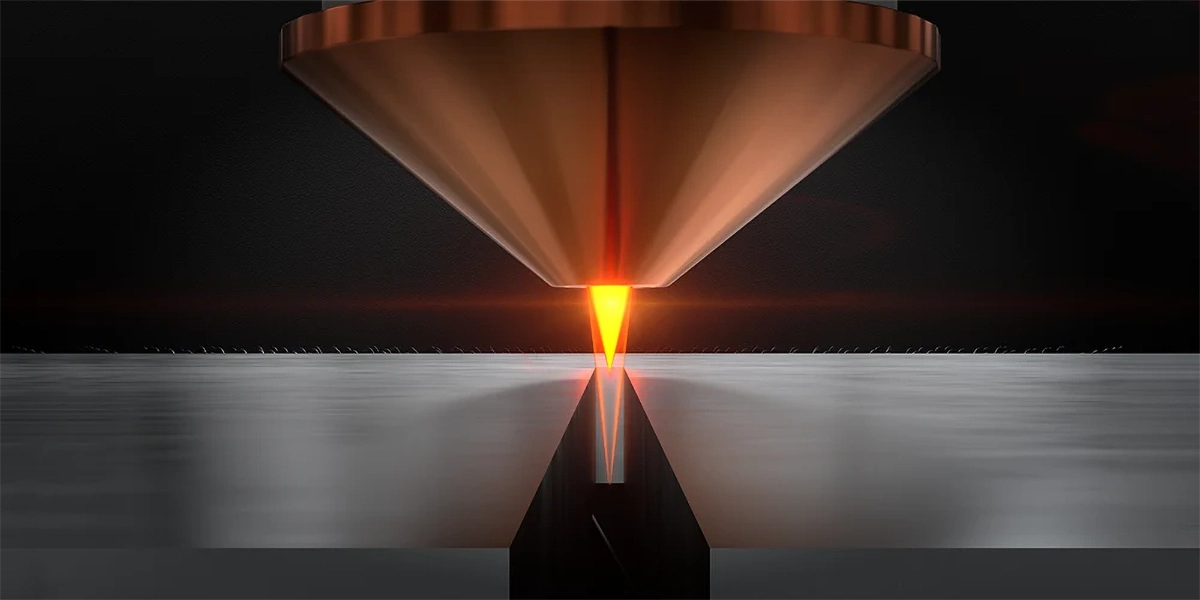

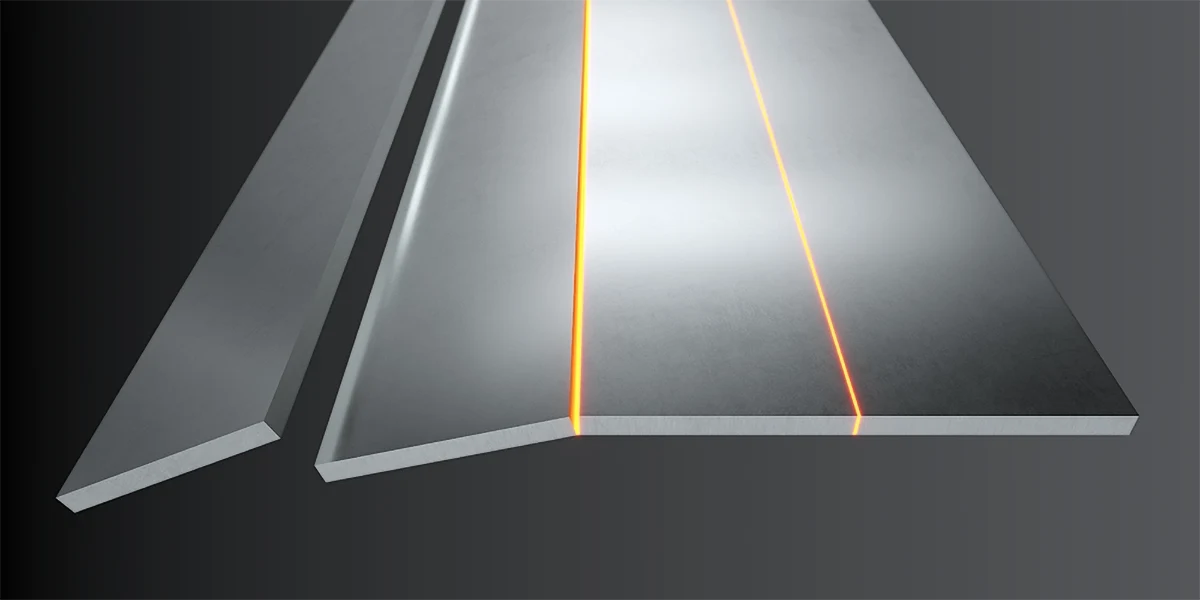

The laser focus position can be dynamically adjusted according to factors such as the thickness of the metal material, surface unevenness, or changes in the distance between the cutting head and the workpiece. This feature ensures that the laser energy density is always optimized, which in turn ensures cutting accuracy and maintains excellent cut quality.

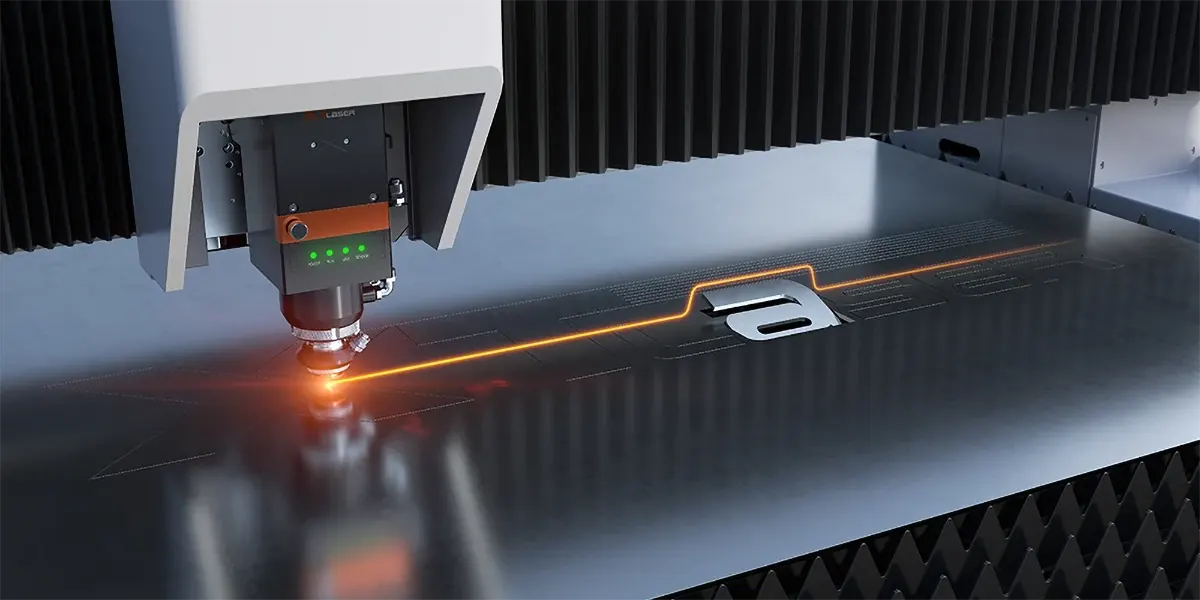

The surface of the metal workpiece after laser cutting is clean and remains partially connected to the remaining material, which prevents the workpiece from shifting and helps to achieve batch unloading and high-efficiency production.

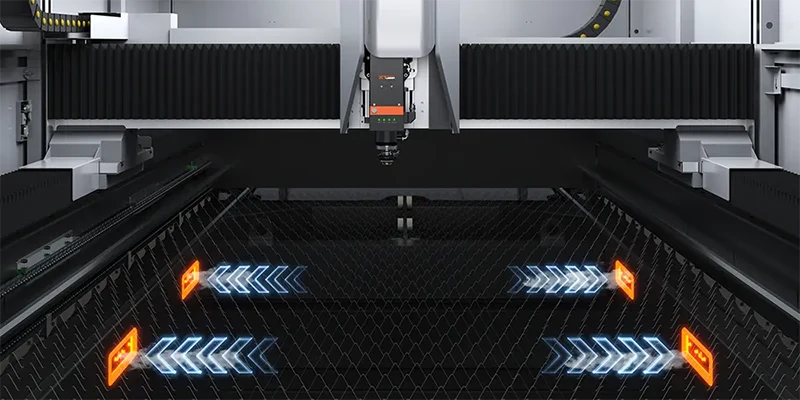

Real-time monitoring of the distance between the cutting head and the workpiece or table, and automatically adjusts the height or stops the machine before a possible collision to protect the cutting head and the workpiece from damage.
Worry-free service guarantee
We value the real needs and user experience of our customers and provide timely and effective services to global customers.
Warning: imagepng(/www/wwwroot/www.xtlaser.net/wp-content/uploads/elementor/thumbs/2025052082-r6ix45x5p2y12irqx75i46ssicfc9nbjzpy5b8z9q8.png): failed to open stream: Permission denied in /www/wwwroot/www.xtlaser.net/wp-includes/class-wp-image-editor.php on line 585
Machine maintenance
During the warranty period, maintenance personnel will provide on-site maintenance services, covering mechanical structure, electrical system, control system, etc.
Warning: imagepng(/www/wwwroot/www.xtlaser.net/wp-content/uploads/elementor/thumbs/2025052046-r6ix45x5p2y12irqx75i46ssicfc9nbjzpy5b8z9q8.png): failed to open stream: Permission denied in /www/wwwroot/www.xtlaser.net/wp-includes/class-wp-image-editor.php on line 585
Flexible training
XT LASER provides online/offline free combination training programs, you can freely choose according to your needs.
Warning: imagepng(/www/wwwroot/www.xtlaser.net/wp-content/uploads/elementor/thumbs/2025052018-r6ix45x5p2y12irqx75i46ssicfc9nbjzpy5b8z9q8.png): failed to open stream: Permission denied in /www/wwwroot/www.xtlaser.net/wp-includes/class-wp-image-editor.php on line 585
Global spare parts supply
Adopting the "proximity principle" to provide original accessories for global users, and the headquarters central warehouse will ship within 3-5 working days.
Warning: imagepng(/www/wwwroot/www.xtlaser.net/wp-content/uploads/elementor/thumbs/2025052097-r6ix45x5p2y12irqx75i46ssicfc9nbjzpy5b8z9q8.png): failed to open stream: Permission denied in /www/wwwroot/www.xtlaser.net/wp-includes/class-wp-image-editor.php on line 585
All-day technical support
7×24 hours three-level response (emergency problems within 30 minutes), remote guidance + real-time update of process parameter library.
FAQs
Have any questions? The following FAQs can solve your confusion.
What materials can fiber laser cutting machines cut?
Fiber laser cutting machines can cut most metal materials, including stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. They are widely used in sheet metal processing, kitchen utensils, aerospace, metal cabinets, automotive parts, construction and other industries.
What software does the laser cutting machine need to support? What file formats are compatible?
Fiber laser cutting machines require professional laser cutting control software and CAM software to process design files and generate cutting paths, such as LightBurn, AutoCA, etc., and are compatible with DXF, SVG, AI (Adobe Illustrator), EPS, DWG, PDF, PLT, etc.
What is the maximum processing size of the G series 2.0 laser cutting machine?
The maximum processing size of the workpiece currently supported by the G series 2.0 is 1530*3050 mm, as long as your plate size is within this range.
How to choose laser power?
The laser power of the laser cutter depends on the cutting material and thickness. If you don’t know how to choose the right power for your device, please contact us.
How difficult is it to operate a laser cutting machine? Does it require professional training?
XT LASER’s sheet metal laser cutting machine is equipped with a visual operation interface and a detailed operation manual, so even if you are a novice, you can quickly get started. If you are a beginner, it is recommended to read the safety guide before use, or contact our professional technicians online.
Does the machine require special ventilation or cooling systems when working?
Yes! Laser cutting of metal materials will produce smoke and dust. Under the premise of ensuring ventilation, optional dust collection equipment can be used to reduce environmental pollution.
In addition, the machine’s built-in water cooling/air cooling system ensures the stability of the equipment for long-term operation.
